KORSB-H

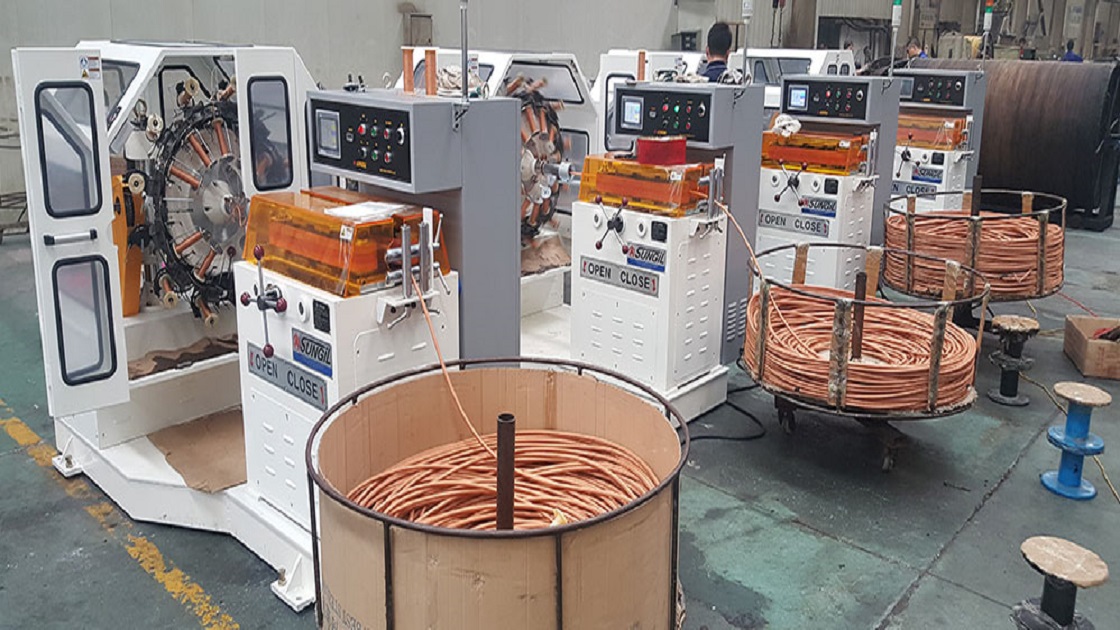

HORIZONTAL ROTARY BRAIDER
FEATURES
• 공급 선재 : POLYETHYLENE WIRES, POLYAMID WIRES, ARAMID WIRES, ETC.
• CARRIER TENSION : 0.2 - 1.8 kg
• 합수 : 1 - 3 ends
• BOBBIN SIZE
• HAUL-OFF : CATERPILLAR BELT
| ITEM | SB TYPE |
|---|---|
| 외경(FLANGE) | Ø66 mm |
| 동경(BARREL) | Ø28 mm |
| 내폭(TRAVERSE) | 130.5 mm |
| 축공(BORE) | Ø16.8 mm |
| 권취용량(WINDING CAPACITY) | 366 cc |
ELECTRICAL SPECIFICATIONS
- CONTROL : SICS (Sung il 국제 표준 Control System)
- OPERATION PANEL : TOUCH SCREEN PANEL
- LOCAL PANEL : PUSH BUTTON PANEL
SPECIAL FUNCTIONS
- 단선감지
- 선재종료
- 운전 중 트러블 감지
PRINCIPAL SIGNS
- 편조외경
- 선경
- PITCH, 편조각도 및 편조밀도
- CARRIER 속도
- 생산량
SPECIFICATION
DIVISION | 16 CARRIER | 24 CARRIER |
| Type | Horizontal | |
| Gross Shipping Weight | 1820 kg | 1840 kg |
| Floor Space | 1.9 sq M | 1.9 sq M |
| Carrier R.P.M | 100 rpm | 80rpm |
| Bobbin Capacity | 366 cc | |
| Carrier Tension | 0.2kg - 1.8kg | |
| Usage Material | Yarn, Soft Copper Wire, Soft Steel Wire | |
| Dia, of Braid | Max Ø30mm | |
| Drive Motor | 3HP | |
