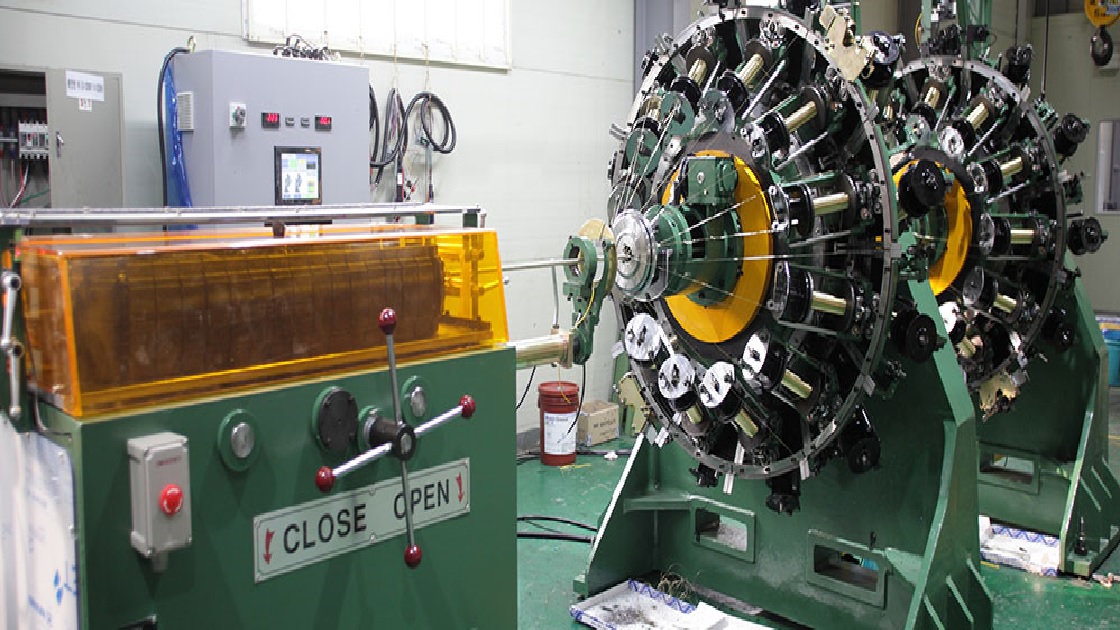

KORRB-F WIRE BRAIDER M/C
HORIZONTAL ROTARY BRAIDER
FEATURES
- 선재 종류 : HARD STEEL WIRE, SOFT STEEL WIRE, STAINLESS STEEL WIRE, YARN etc.
- CARRIER 장력 : 2.0 - 13.6 kg
- 캐리어 수 : 16, 20, 24, or 36 carriers
- 선재 합수 : 4 - 12 ends
- BOBBIN SIZE
- DRIVE MOTOR : SERVO MOTOR 7.5 ㎾
- HAUL-OFF : ATT-CHAIN TRACK
- HAUL-OFF DRIVE MOTOR : SERVO MOTOR 4.4 ㎾
| ITEM | RB-F WIRE MACHINE | RB-F YARN MACHINE |
|---|---|---|
| FELANG | Ø139.7 mm | Ø139.7 mm |
| BARREL | Ø44.5 mm | Ø44.5 mm |
| TRAVERSE | 158.9 mm | 254 mm |
| BORE | Ø25.4mm | Ø35.4mm |
| WINDING CAPACITY | 2,200 cc | 3,600 cc |
ELECTRICAL SPECIFICATIONS
- • CONTROL : SICS (Sung il 국제 표준 Control System)
- • OPERATION PANEL : TOUCH SCREEN PANEL
- • LOCAL PANEL : PUSH BUTTON PANEL
VIDEO
SPECIAL FUNCTIONS
• 단선감지
• 선재종료
• 운전 중 트러블 감지
PRINCIPAL SIGNS
• 편조외경
• 선경
• PITCH, 편조각도 및 편조밀도
• CARRIER 속도
• 생산량
RB-F WIRE BRAIDER SPECIFICATION
| DIVISION | 16 CARRIER | 20 CARRIER | 24 CARRIER | 36 CARRIER |
|---|---|---|---|---|
| Type | Horizontal | |||
| Gross Shipping Weight of Deck | 1500kg | 1700kg | 1900kg | 2500kg |
| Floor Space | 4.8 sq M | 4.8 sq M | 4.8 sq M | 7.2 sq M |
| Carrier R.P.M | 90rpm | 80rpm | 69rpm | 45rpm |
| Bobbin Capacity | 2200cc | |||
| Carrier Tension | 4kg - 13.6kg | |||
| Usage Material | Steel Wire , Cotton Yarn, Polyester Yarn, Fiberglass Yarn, Others | |||
| Dia, of Braid | Max Ø22mm | Max Ø30mm | Max Ø45mm | Max Ø75mm |
| DriveServo Motor | 7.5kw | 7.5kw | 7.5kw | 10kw |
RB-F YARN BRAIDER SPECIFICATION
DIVISION | 16 CARRIER | 20 CARRIER | 24 CARRIER | 36 CARRIER |
|---|---|---|---|---|
| Type | Horizontal | |||
| Carrier Speed | 100rpm | 90rpm | 75rpm | 50rpm |
| Floor Space | 4.8 sq M | 4.8 sq M | 4.8 sq M | 7.2 sq M |
| Bobbin Capacity | 3600cc | |||
| Outer Dia, Hose | Max Ø22mm | Max Ø30mm | Max Ø45mm | Max Ø75mm |
| Carrier Tension | 2kg - 13.6kg | |||
